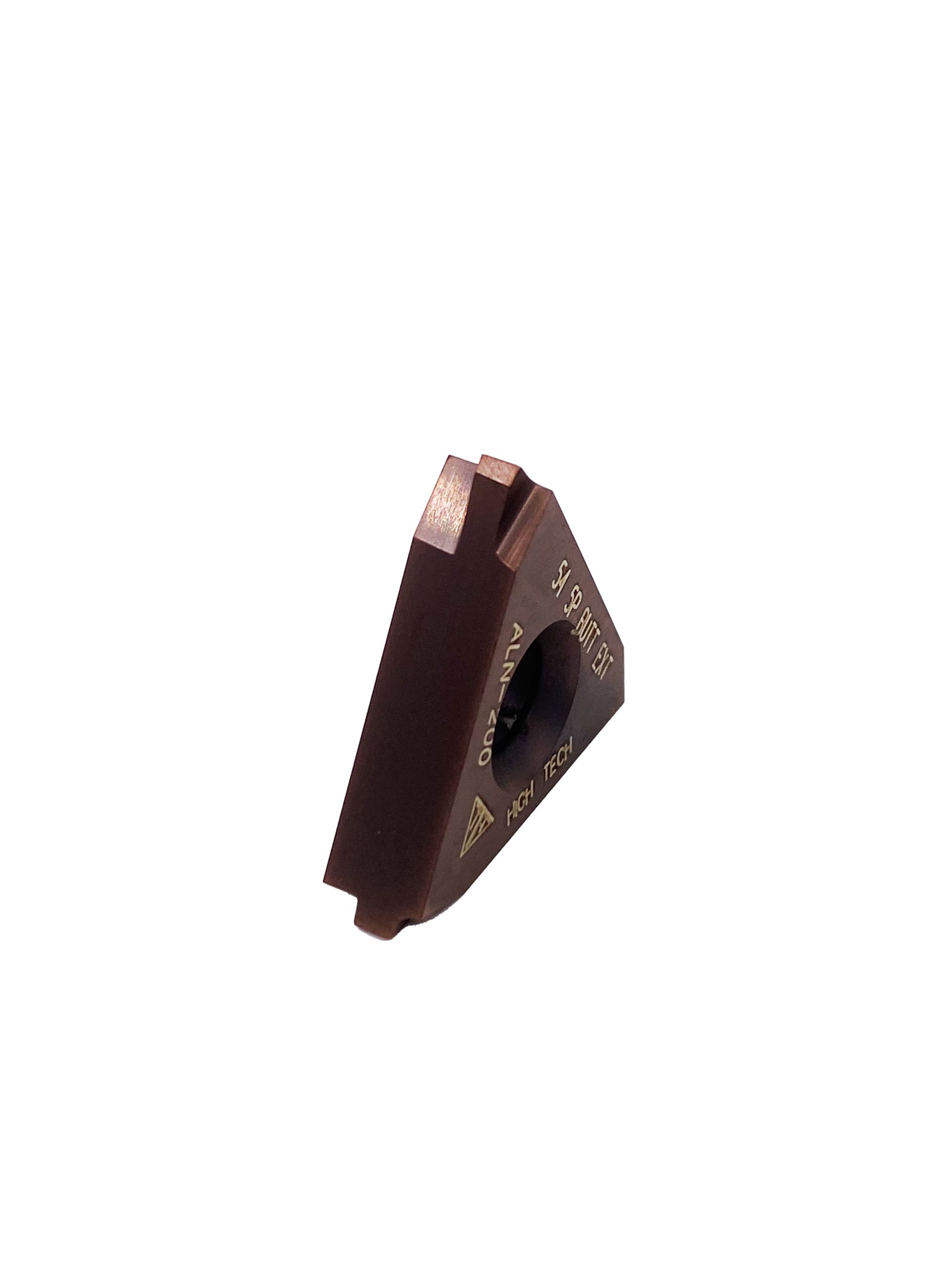

TNMA 5P BUTT

Carbide Inserts

TNMA Buttress

API 5P, BUTTRESS THREADING
STYLE TNMA
INTERNAL AND EXTERNAL

8P, BUTTRESS THREADING
STYLE TNMA
INTERNAL AND EXTERNAL

Category: Carbide Inserts Tags: 5P, 8P, Buttress, Buttress Inserts, TNMA

Click For Available Grades >

x

		Uncoated Grades
ANSI CLASS	AVERAGE GRAIN SIZE	Grade
C-2	SUBMICRON	15	High strength carbide for low speed machining non-ferrous and high temperature alloys. Excellent for Milling, Turning or Grooving.
C-3	ULTRAFINE	16	For semi-finishing/finishing of non-ferrous alloys at high tempature and moderate speeds and chip loads.
C-2	FINE	18	A general purpose grade for machining cast iron, non-ferrous and high tempature alloys.
C-6	MEDIUM	55	A general purpose steel cutting grade for semifinishing at moderate to high speeds. Great for threading and grooving.
C-7	MEDIUM	65	A high titanium grade carbide for use when edge buildup is a problem and good cosmetics are required. Can be used at moderate to high speeds on carbon and alloy steels. Good for threading, grooving and profiling.
		Coated Grades
		ALUMINUM NITRIDE (PVD)
C-2	SUBMICRON	ALN-200	A tough threading grade with superior edge strength. Suitable for steel as well as chrome and high tempature alloys.
C-3	ULTRAFINE	ALN-202	Finishing and semi-finishing of high tempature alloys, threading, grooving on short chipping materials. Similar to ALN-200 except more abrasion resistant.
C-2	FINE	ALN-205	Finishing grade for for high tempature alloys.
C-6	MEDIUM	ALN-220	Finishing grade for steel
		Titanium Nitride (PVD)
C-2	SUBMICRON	TPN-100	Superior tough grade for threading steel when chip interference is a problem.
C-6	MEDIUM	TPN-120	A general purpose steel cutting grade for finishing or semifinishing at moderate to high speeds. Great for threading, grooving and light interupted cuts.
		Multi Coat (PVD)
C-2	SUBMICRON	TAN-400	Our toughest threading grade with superior edge strength. Suitable for steel as well as chrome and high tempature alloys.
C-3	ULTRAFINE	TAN-402	Finishing and semi-finishing of high tempature alloys, threading, grooving on short chipping materials. Similar to ALN-200 except more abrasion resistant.

Description

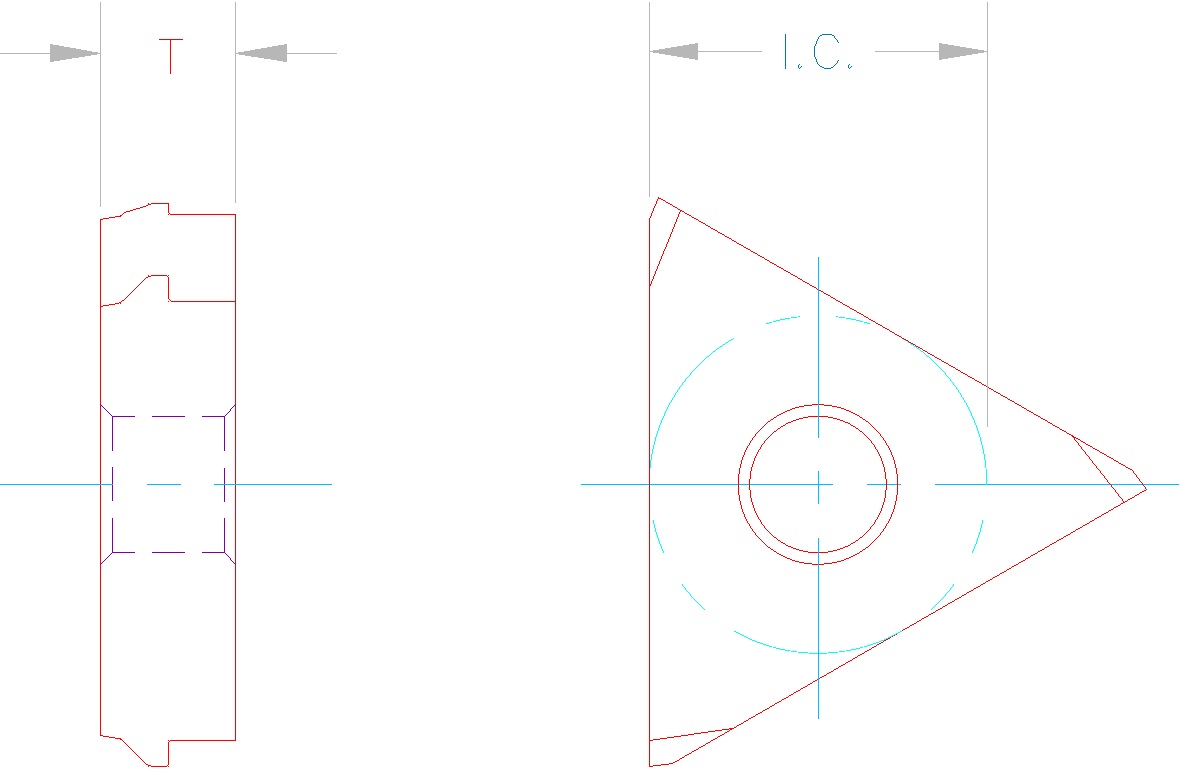

*Catalog Number	Casing Size	Dimensions
*Catalog Number	Casing Size	I.C.	Thk.
TNMA 54 5P BUTT 3/4 TPF	4-1/2 – 13-3/8	5/8	.250
TNMA 54 5P BUTT 1 TPF	16 & Larger	5/8	.250

*Catalog Number	Dimensions
*Catalog Number	I.C.	Thk.
TNMA 43 8P BUTT	1/2	.187

*Specify internal or external when ordering.
